US-3060 Lab Cryostat Microtome

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:
1 Piece/Pieces
Transportation:
Ocean,Land,Air
Port:
Qingdao,Jinan,Shanghai
Share:
  • Product Description
Overview
Product Attributes

BrandUMS

The Range Of Temperature Setting-30℃~-10℃

Time Freezing Shelf Cool Down To -30℃60 Minutes

Freezing Shelf Minimum Temperature﹣45 ℃

Section Thickness Range1μm~80μm Adjustable

Supply Ability & Additional Information

PackagingExport Package

TransportationOcean,Land,Air

Place of OriginChina

PortQingdao,Jinan,Shanghai

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,EXW,FCA,CPT,CIP

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Export Package

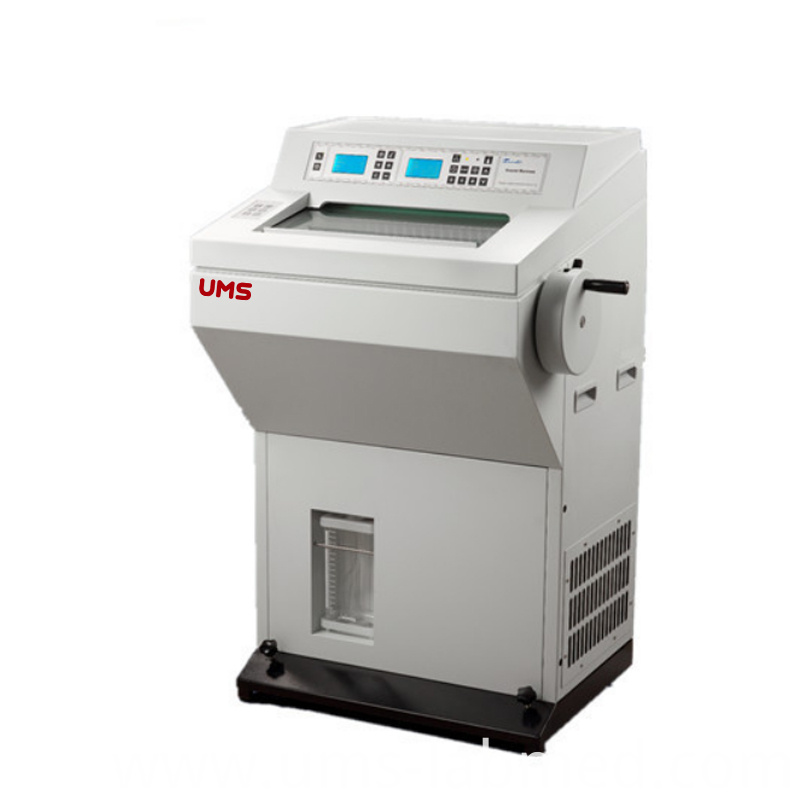

US-3060 Lab Cryostat Microtome

Features


  1. Take both aesthetics and practicality into structure design
  2. Design ergonomically, and all drive parts are produced by machining center.
  3. Mechanism of microtome is protected from expansion and contraction by  being seated out of the freezing chamber to reduce maintaining frequency to the hilt
  4. Electronic control system with Powerful functions and convenient operation
  5. LCD screen displays total slicing number and thickness, section thickness, retraction, temperature, date, time, timing defrost, manually defrost, and timing power on/off.
  6. Section counting function counts total sliced pieces and thickness.
  7. Specimen retraction function protects specimens from blade scratching and ensures sections` integrality.
  8. Fast trimming function enables fast switch between sectioning and trimming mode.
  9. Humanize standby function: freezing chamber temperature is between -10℃  and -1℃ automatically while standby and will reach appropriate temperature for slicing in 10 minutes after standby is canceled.
  10. Sterilization by UV light takes 35 minutes every time.
  11. Precise, comfort, and safe slicing experience
  12. Blade clamp with lock on top of blade holder enables to clamp wide or narrow blades. To avoid flexible blade cause by spring fatigue, we adopted three-point pressing plate to fix blade and a cam lock to ensure tight.
  13. Blade clamp enables to move horizontally to avoid danger from unintended touch on blade. A third of the blade can do the entire slicing, which makes the blade`s life time three times longer.
  14. Anti-rolling plate enables to adjust horizontally, verticality, and also to adjust angle and gap with pressing plate.
  15. Interface of artificial intelligence make operation convenient and easy-learning.
  16. Keyboard enables to lock to avoid misoperation.
  17. LED illumination in freezing chamber.
  18. Handwheel enables to be locked at 9 spots.
  19. Specimen clamp` s x axis and y axis enable to adjust 8°, z axis enables to adjust 360°, which ensure the precision.
  20. Fast, steady refrigerant system
  21. Cryostat adopts a DANFOSS compressor to cool down freezing chamber by R404A environment friendly fluoride-free refrigerant.
  22. It takes only 60 minutes to get appropriate temperature for slicing in fast freezing mode.
  23. Wide freezing shelf may hold 10 specimen discs meanwhile.
  24. Vacuum glass window with transparent electronic heating resistance on top layer enable to prevent fog and cold air leakage.


Technical Specifications


  1. Freezing chamber temperature range:-30℃~-10℃
  2. Time freezing shelf need to cool down to -30℃:60 minutes
  3. Freezing shelf minimum temperature:-45℃
  4. Minimum temperature of heat extractor on freezing shelf:-55℃
  5. Heat extractor working time: 15 minutes
  6. Maximum specimen size:35mm×35mm
  7. Specimen vertical stroke:60mm
  8. Specimen horizontal stroke:20mm
  9. Rough feeding speed: 0.7mm/s or 0.35mm/s
  10. Section thickness range: 1μm~80μm adjustable;
  11. 1μm~20μm, in 1μm increment;
  12. 20μm~40μm, in 2μm increments;
  13. 40μm~80μm, in 5μm increments.
  14. Trimming thickness range: 10μm~400μm adjustable;
  15. 10μm~50μm, in 5μm increments;
  16. 50μm~100μm, in 10μm increments;
  17. 100μm~400μm, in 50μm increments.
  18. Retraction range: 0μm~80μm adjustable; in 5μm increment.
  19. Voltage and frequency: AC220V±10%, 50Hz(Standard),
  20. or AC110V±10%, 60Hz
  21. Power: 650W
  22. Weight: 125kg
  23. Dimensions(W×D×H): 660×640×1130mm




Accessories:


Standard Setting List

1. Specimen Disc           10 pcs

2. Fuse (2A)               2 pcs

Fuse ( 15A )            2 pcs

3. Aplliance Stand          1 pcs

4. Power line              1 line

5. Hexagonal Wrench       1 set

6.Brush                   1 pc

7.Handle                  1 pc



Package Info:

Dimensions: 785 ×785×1336mm,

Weight: 180kg
